Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: KD
  • Model Number: KD-WVC-260A 260W
  • Output Power: 3-260
  • Output Type: Single
  • Size: 212mm*168mm*32mm
  • Weight: 1.3KG
  • Input Voltage: 22-50VDC
  • Output Voltage: 90-140VAC/190-260VAC
  • Type: DC/AC Inverters
  • Output Frequency: 260W
  • Output Current: 1.08-2.6A
  • Case Material: Aluminum
  • Product name: micro inverter 260W
  • Measurement: 212mm*168mm*32mm
  • Unit weight: 0.7kg
  • Waterproof: IP 67
  • Communication: power line carrier
  • Min/max start voltage: 22-50v
  • Protection Function: island
  • Warranty: 25 years
  • Certificate: CE/Rohs/patent

Packaging & Delivery

Packaging Details Micro inverter 260W /exported carton
Micro inverter 260W outdoor solar system AC-DC monitoring function
KD-WVC260A Series Micro Inverter
Output Power:260W;For Home Station,*MW Station,Low Cost,Easy Intallation,For Monocrystalline Silicon & Polycrystalline Silicon
Product Description
KD-WVC260A Series Using IP67 waterproof streamline design, Can effectively prevent rainwater on the surface erosion, Built-in high-performance Maximum Power Point Tracking(MPPT)Function,Better able to track changes in the solar luminosity and control different output power, Effectively capture and collect sunlight. AC electric power transmission using the reverse transmission technology, Is one of our patented technology, The inverter output power can provide load priority use, Extra electricity to the grid, Efficient use of the inverter to the power emitted, Electricity transmission rate of up to 99%.
Product Features
Pure Sine Wave OutputHigh performance Maximum Power Point Tracking(MPPT)Power Automatically Locked(APL)Reverse power transmission
High-Frequency High Conversion RateAnti-Islanding ProtectInput /output is fully isolated to protect the electrical safetyMultiple parallel stacking
Power Line CommunicationsIP67 WaterProofIntelligent Monitoring SystemsSmaller Size & Lighter Weight
The Leading Patent TechnologyFlexible InstallationSimplify maintenance (user serviceable)Installation and maintenance costs low
High Efficiency & Best Cost-Effectiveness
Intelligent MPPT & Weak Light Tracking Algorithm
Met The Grid Products Certification Standard
Product Parameters/Details
  Input DataKD-WVC260A-120VAC/230VAC
  Recommended input power200-300Watt
  Recommend the use of PV modules300W/Vmp>34V/Voc<50V
  Maximum input DC voltage50V
  Peak power tracking voltage25-40V
  Operating Voltage Range17-50V
  Min / Max start voltage22-50V
  Maximum DC short current15A
  Maximum Input Current9.8A
  Output Data@120VAC@230VAC
  Peak power output260Watt260Watt
  Rated output power250Watt250Watt
  Rated output current2.08A0.92A
  Rated voltage range80-160VAC180-260VAC
  Rated frequency range57-62.5Hz47-52.5Hz
  Power factor>96%>96%
  Maximum units per branch circuit15PCS(Single-phase)30PCS(Single-phase)
  Output Efficiency@120VAC@230VAC
  Static MPPT efficiency99.5%99.5%
  Maximum output efficiency92.3%94.6%
  The average efficiency91.2%93.1%
  Night time power consumption<50mW Max<70mW Max
  Ambient temperature-40°C to +60°C
  Operating temperature range (inverter inside)-40°C to +82°C
  Dimensions (WxHxD)215mm*163mm*32mm
  Waterproof RatingIP67
  Communication ModePower Line
  Power transmission modeReverse transfer, load priority
  Monitoring SystemLifetime free
  Electromagnetic compatibilityEN50081.part1EN50082.part1
  Grid disturbanceEN61000-3-2 Safety EN62109
  Grid detectionDIN VDE 1026 UL1741
  CertificateCEC,CE National patent technology

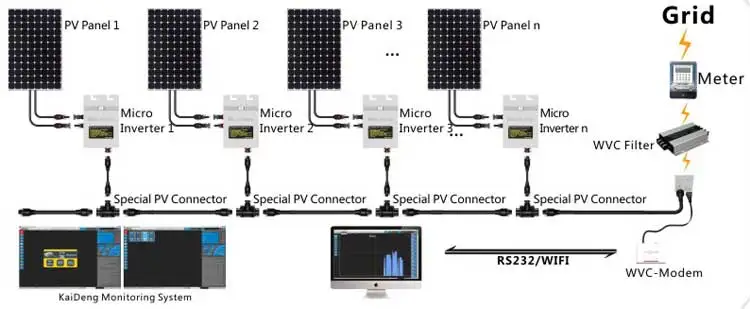

System Block Diagram & Application
In order to achieve higher power, we can use this inverter in stack. For example: 10 pcs of 260W grid tie inverter used in stack can achieve 2600W. And the stacking number is unlimited.
Easy Installation

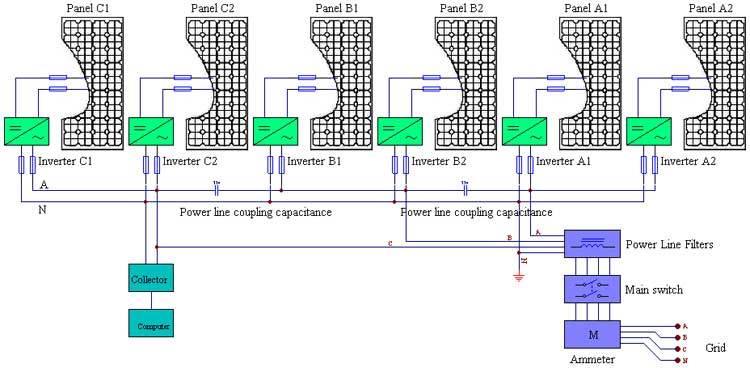

Single-Phase & Three-Phase Electrical Schematics
  • Please install the inverters according to the user manual and connnet the groud safety.
  • Forbid openning the shell with non-professional person ,only qualified maintenance person can repair the product .
  • The inverter should be installed in the low humidity and well ventilated place,and remove the flammable things surrounding the inverter for avoiding overheating .
  • Avoid children play when the inverter is working.
  • Ensure the DC input and AC output when connect with PV.
  • The Vmp and Voc of PV should be fuit for the prodcut for get output max.
3-Month Free Recall.1-Year Free Repair.20-Year Limited Warranty.
Why Is The Micro Inverter
  1. The transition from a centralized to a distributed inverter optimizes energy collection.
  2. The converter module integrated into the solar panels can reduce installation costs.
  3. Soft switch technology to replace hard-switching technology can improve efficiency and reduce heat dissipation.
  4. From cottage industry to mass production, standardized design (hardware and software) to improve reliability and reduce costs.
  5. Using a special capacitor (due to the high failure rate). Design requires a higher voltage to reduce the current, we use a special electrolytic capacitors.
  6. The converter can be connected to the grid to eliminate the need for many battery applications. The high price of batteries, require maintenance, life expectancy is shorter.
  7. Work required micro-inverter power increasingly smaller (only a few hundred watts), which can reduce the internal temperature and improve reliability.
  8. Micro-inverter solar inverter system needs to deal with a lot of a particular power level, in order to increase production, thereby reducing costs.
Any Auestion,Please Feel Free To Contact Us.
